Setup Menu List
101
Me
n
u
C
o
nf
igur
at
io
n
a
nd Det
a
ile
d Set
tings
Steady Shot
Setting the image
stabilizer
On / Off
Turn the Steady Shot (image stabilizer) function on/off.
CAMERA SET
Menu items
Subitems and setting values
Contents
AUDIO SET Menu
AUDIO SET
Menu items
Subitems and setting values
Contents
Audio Input
Setting for audio
inputs
TRIM CH-1
–8 dBu to –65 dBu (–41 dBu)
Finely adjust the sensitivity of channel 1 of external
microphone input in steps of 3 dB.
TRIM CH-2
–8 dBu to –65 dBu (–41 dBu)
Finely adjust the sensitivity of channel 2 of external
microphone input in steps of 3 dB.
AGC Link
Linked / Separated
Select the gain link condition when the audio level adjustment
is in AGC mode.
Linked: To vary the CH-1 gain and the CH-2 gain in
synchronization.
Separated: To vary the CH-1 gain and the CH-2 gain
independently according to the respective levels.
1KHz Tone
On / Off
Turn the 1-kHz reference tone signal on/off.
Wind Filter CH-1
On / Off
Turn the wind filter for channel 1 on/off.
Wind Filter CH-2
On / Off
Turn the wind filter for channel 2 on/off.
EXT CH Select
CH-1
CH-1/CH-2
CH-1: To record channel 1 audio input on both channels 1
and 2.
CH-1/CH-2: To record channel 1 and channel 2 inputs on the
respective channels.
Audio Output
Setting for audio
outputs
Monitor CH
CH-1/CH-2 (CH-3/CH-4)
CH-1+CH-2 (CH-3+CH-4)
CH-1 (CH-3)
CH-2 (CH-4)
Select the audio channel(s) to be fed to the headphones and
the built-in speaker.
CH-1/CH-2 (CH-3/CH-4): Stereo
CH-1+CH-2 (CH-3+CH-4): Mix
CH-1 (CH-3): CH-1 (CH-3) only
CH-2 (CH-4): CH-2 (CH-4) only
( ): with Output CH set to “CH-3/CH-4”
Output CH
CH-1/CH-2
CH-3/CH-4
Select audio output channels from either channels 1 and 2 or
channels 3 and 4.

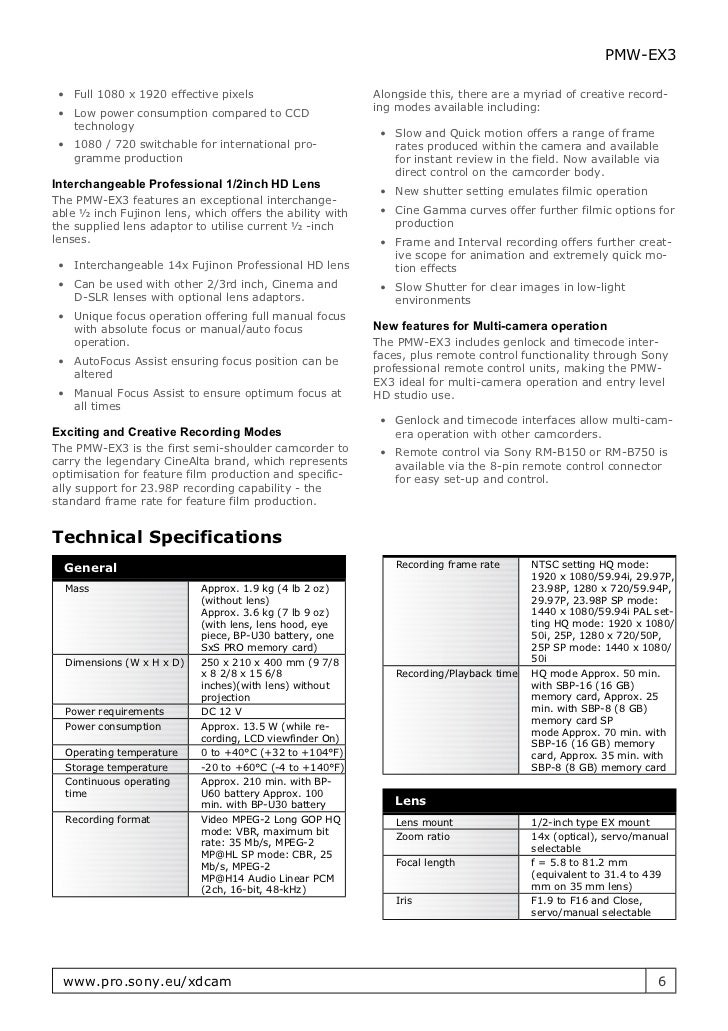

Sony Pmw Ex3 Manual
Alarm Level
0 to 10 (5)
Set the alarm sound volume.
Beep
On / Off
Select whether or not to sound a beep upon each operation.
2
For the customers in the U.S.A.
This equipment has been tested and found to
comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference when the equipment is operated
in a commercial environment. This
equipment generates, uses, and can radiate
radio frequency energy and, if not installed
and used in accordance with the instruction
manual, may cause harmful interference to
radio communications. Operation of this
equipment in a residential area is likely to
cause harmful interference in which case the
user will be required to correct the
interference at his own expense.
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate
this equipment.
All interface cables used to connect
peripherals must be shielded in order to
comply with the limits for a digital device
pursuant to Subpart B of Part 15 of FCC
Rules.
For the customers in Europe
This product with the CE marking complies
with both the EMC Directive and the Low
Voltage Directive issued by the Commission
of the European Community.
Compliance with these directives implies
conformity to the following European
standards:
• EN60065 : Product Safety (AC adaptor)
• EN55103-1 : Electromagnetic Interference
(Emission)
• EN55103-2 : Electromagnetic Susceptibility
(Immunity)
This product is intended for use in the
following Electromagnetic Environments:
E1 (residential), E2 (commercial and light
industrial), E3 (urban outdoors), E4
(controlled EMC environment, ex. TV studio)
The manufacturer of this product is Sony
Corporation, 1-7-1 Konan, Minato-ku, Tokyo,
Japan.
The Authorized Representative for EMC and
product safety is Sony Deutschland GmbH,
Hedelfinger Strasse 61, 70327 Stuttgart,
Germany. For any service or guarantee
matters please refer to the addresses given
in separate service or guarantee documents.
For the State of California, USA only
Perchlorate Material - special handling may
apply, See www.dtsc.ca.gov/
hazardouswaste/perchlorate
Perchlorate Material : Lithium battery
contains perchlorate.
For the customers in the USA and Canada
RECYCLING LITHIUM-ION BATTERIES
Lithium-Ion batteries are recyclable.
You can help preserve our environment by
returning your used rechargeable batteries to
the collection and recycling location nearest
you.
For more information regarding recycling of
rechargeable batteries, call toll free 1-800-
822-8837, or visit
http://www.rbrc.org/
Caution: Do not handle damaged or leaking
Lithium-Ion batteries.
For the customers in Taiwan only
